VPI Analog Drive System - High-Performance Turntable Motor for Vinyl Record Players | Perfect for Audiophiles & Home Audio Setups
$695.75 $1265
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:29 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:76920708
Guranteed safe checkout
Product Description
"...a shockingly big deal — the ADS is killer." - Scot Hull
The ADS design includes two pure analog frequency generators featuring low distortion and noise; a high current Class-A/B amplifier that is transformer-coupled to the turntable output; analog control logic for low noise operation; 33/45 RPM analog speed adjustment controls with center detente positions that are factory calibrated.

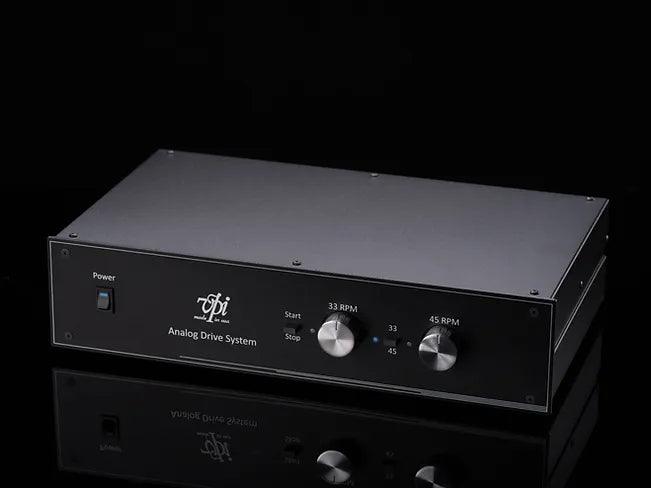

The Machine:

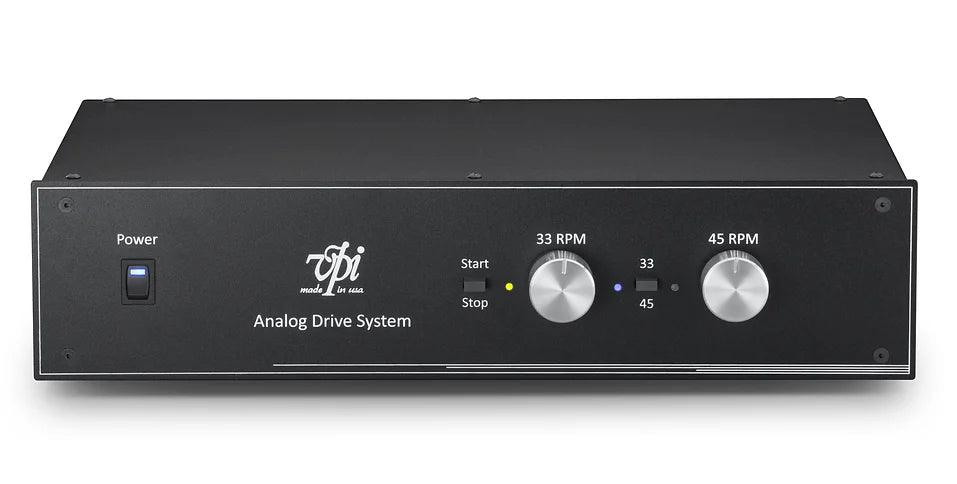

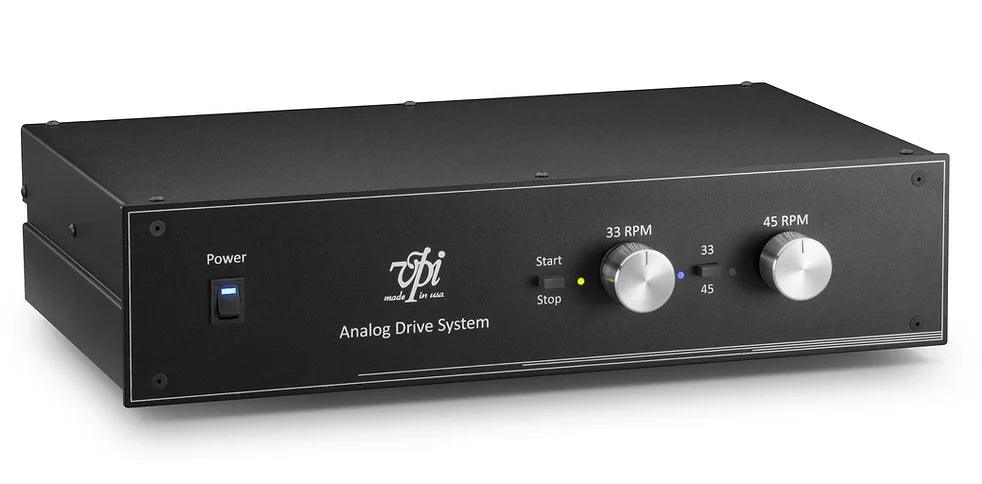

- The platter is started and stopped by the front panel Run/Stop momentary push button switch.
- The front panel contains a two-position push button switch for selecting either 33 RPM or 45
RPM operation. - There are separate speed adjustment controls for 33 and 45
RPM. - The controls have a detented center position that is factory-calibrated for 60 Hz (33 RPM)
and 81 Hz (45 RPM). - The speed is continuously adjustable +/- 3 Hz
- Blue LED indicators adjacent to the controls indicate which speed is set at a glance.
Additional Specifications:
Line Voltage: 115/230 VAC Factory set
Line Frequency: 50/60Hz
Line Fuse: 1 amp (Slo-Blo)
Output voltage: 115/230 VAC Factory set
Start Voltage: 120/240 VAC
Run Voltage: 90/180 VAC
Output Frequency: 50Hz/60Hz Factory Set
Output Frequency Range: 60 Hz Center Detent: 60Hz @33 RPM & 81Hz@ 45 RPM
50 Hz Center Detent: 50Hz @33 RPM & 68Hz@ 45 RPM
Control Range: +/- 3Hz
Output Power: 15W
Dimensions: 16” X 4” X 12” (W X H X D)
Weight: 10lbs
Line Frequency: 50/60Hz
Line Fuse: 1 amp (Slo-Blo)
Output voltage: 115/230 VAC Factory set
Start Voltage: 120/240 VAC
Run Voltage: 90/180 VAC
Output Frequency: 50Hz/60Hz Factory Set
Output Frequency Range: 60 Hz Center Detent: 60Hz @33 RPM & 81Hz@ 45 RPM
50 Hz Center Detent: 50Hz @33 RPM & 68Hz@ 45 RPM
Control Range: +/- 3Hz
Output Power: 15W
Dimensions: 16” X 4” X 12” (W X H X D)
Weight: 10lbs
