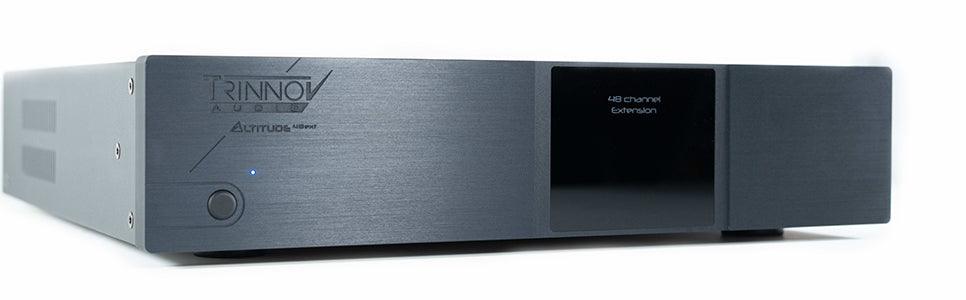

Trinnov Altitude48ext 16-Channel Home Theater Preamplifier - Premium Audio Processor for Immersive Dolby Atmos & DTS:X Experience (Professional Installation Required) - Perfect for Luxury Home Cinemas and High-End Audio Systems

Product Description

UP TO 48 CHANNELS

Thanks to Altitude32’s unique hardware conception, Trinnov’s engineering has been able to find a solution to output even more discrete channels from the already state-of-the-art Altitude32, expanding the count to 48 real discrete channels by using its 32 analog outputs and its 16 AES outputs simultaneously.

FULL HOME ATMOS EXPERIENCE

It will allow – for the first time – users to experience the full Home Atmos experience with its 24.1.10 layout, while still allowing more possibilities in term of bass management or multi-amping and remapping. However, that solution requires an AES multi-channel High-end DAC that could compete with Altitude’s own renowned DAC: Trinnov’s solution to that problem is Trinnov Altitude48ext.

PERFECT COHERENCE IN THE RENDERING

Based on Magnitude32, the Altitude48ext includes 16 channels of AES/EBU inputs and 32 channels of analog outputs using the same DAC used in the Altitude32, ensuring perfect coherence in the final rendering. But the Altitude48ext is not just a DAC; it is a fully capable Trinnov unit with processing power to perform tasks such as calibrated crossovers, bass management, and both third-octave and FIR EQ.

ALL-INCLUSIVE DECODING PACKAGE

The standard version of the Altitude16 natively decodes Dolby Digital Plus®, Dolby TrueHD®, DTS Digital Surround® and DTS-HD Master Audio® It also includes all immersive codecs by default so you can experience a new world of immersive sound with the latest technologies by Dolby Laboratories®, DTS Inc®, and Auro Technologies®.

SPECIFICATIONS

DIGITAL INPUTS

• DB25 (110 Ohms – Tascam Pinout)

ANALOG INPUTS

• DB25 (20k Ohms – Tascam Pinout)
• XLR (20k Ohms) for the first 8 channels

ANALOG OUTPUTS

• DB25 (100 Ohms – Tascam Pinout)
• XLR (100 Ohms) for the first 8 channels

HIGH-PERFORMANCE AUDIO

• Resolution / Sampling Rate:
• 24 bits/96 kHz
• A/D signal-to-noise ratio:
• 119 dB (A-Weighted)
• THD+N ADC:
• -103 dB
• D/A signal-to-noise ratio:
• 118 dB (A-Weighted)
• THD+N DAC:
• -98 dB
• Variations under 25ps are recovered, jitter attenuation superior to 50 dB is achieved above 100Hz
• AntiPop relays on each analog output
• Maximum Number Of Processing Channels:
• 32 channels at 96 kHz

DESIGN AND ASSEMBLY

• All Audio boards designed and manufactured by Trinnov
• Processor: Intel i5 Quad-Core
• Cooling System: Custom heat sinks + additional slow fans

PHYSICAL CHARACTERISTICS

• Wake on LAN capable
• Chassis:
• 2U
• Power supply:
• 240V AC / 50-60 Hz.
• Option:
• 130V AC
• Consumption:
• 90 W max.
li>Weight:
• 10,2kg
